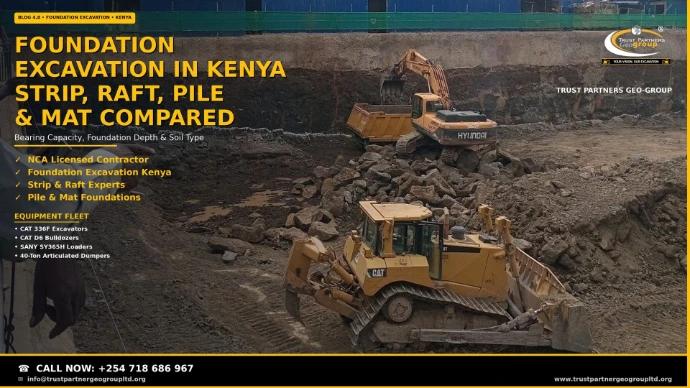

Foundation Excavation in Kenya: Strip, Raft, Pile & Mat Foundations Compared
The foundation is where the building meets the ground — and the excavation is where the foundation meets its specification. Every type compared: depths, tolerances, plant and honest 2026 costs.
1. The Foundation Decision: Soil First
Every foundation argument in Kenya resolves to one document: the soil investigation. Its numbers — bearing capacity at depth, soil type and variability, water table — choose the foundation type more honestly than any budget meeting. The decision ladder, in order of cost and capacity: strips or pads where good ground sits shallow; raft where ground is weak or variable but loads are modest; piles where loads are heavy or competence is deep; mat where a high-rise demands the union of all three. Each rung costs roughly double the one below — the engineering discipline is matching the rung to the ground, because the rung below is a structural claim and the rung above is unrecoverable budget. What follows compares all four on the dimensions that matter: excavation depth, tolerance, plant, and honest 2026 cost.
2. Strip Foundations: When Trenches Are Enough
The strip is Kenya's default for good reason: simple trenches, simple concrete, decades of proven performance — on ground that deserves it. The excavation profile: 450–600mm wide trenches to competent soil — 600–900mm deep on good ground, 900mm–1.2m for two storeys, deeper where the soil investigation says so; formation at ±50mm; walls vertical or safely battered; water excluded until blinding. Production is high — a midi excavator walks a residential plot's trenches in a day or two — and cost is the lowest of any type. The limits are equally clear: strips concentrate load on narrow bearing zones, so they demand real bearing capacity — think 100–150 kN/m² — and they punish expansive soils without treatment. On black cotton, the trench keeps going down until the clay ends, or the design switches to a raft; see black cotton foundation practice for what that treatment involves.
3. Raft Foundations: Bridging Weak Ground
The raft trades depth for spread: instead of loading narrow trenches, the whole building footprint becomes the foundation — a reinforced slab, typically 200–400mm, cast on a prepared formation and sized to float on weak or variable ground. The excavation is correspondingly shallow but unforgiving: the full footprint dug to formation — often just 500–1,000mm down — trimmed to ±50mm across its whole area, because the slab is poured against the ground and inherits every bump. Rafts shine on expansive clays (the slab bridges the seasonal movement), filled ground, and mixed profiles where strips would settle unevenly. The excavation plant: excavator for the dig, grade-control for the trim, and density verification where fill sits beneath. The cost: excavation runs KES 200–400 per m² of footprint, but the slab itself — concrete and reinforcement across the whole area — is where the money sits, which is why the raft's total lands around double the strip's on comparable houses.
4. Pile Foundations: Going Deep for Capacity
When competence is deep or loads are heavy, the foundation goes hunting downward: piles — bored or driven — transfer the building's load past every unreliable metre to rock or dense strata. The bored-pile excavation: a piling rig drills 300–1,200mm diameter bores to design depth — 6m to 30m+ in Kenyan practice — with casing or drilling mud where ground or water demands; concrete and reinforcement follow the bore immediately, because an open hole in moving ground is a countdown. The driven alternative: precast or steel sections hammered to set — no excavation at all, but rig mobilisation and a method that suits sites without obstruction. The excavation adjacents that pile programmes forget to budget: pile caps — every pile lands in a reinforced block, dug separately after piling to ±25mm tolerance, carefully, because the pile heads are fresh; and working platforms — the rigs demand compacted platforms their own size before they even start. The full method and pricing comparison is in our bored vs driven piles guide.
5. Mat Foundations: The High-Rise Answer
The mat is the foundation as structure: a thick reinforced slab — 500–1,500mm — under the whole building, tying every column together, spreading loads, resisting the water table's uplift where basements press into it, and often integrating piles beneath for the deepest capacity. Where it appears: towers where footings would overlap, basement boxes where water uplift must be beaten, industrial plant where differential settlement is unthinkable. The excavation is the deepest and most controlled of any foundation type: full-footprint digs at basement depth, formation tolerances of ±25mm across areas measured in thousands of m², survey-controlled throughout, dewatering designed as a system and bracing where depth demands. This is where bulk excavation meets its precision twin — mat excavation for high-rise buildings covers the engineering — and where the cost stack runs highest: dig, trim, dewater, brace, then pour concrete measured in hundreds of cubic metres in a single placement.
6. Excavation Requirements by Type
| Type | Typical Depth | Tolerance | Primary Plant | Water Sensitivity |
|---|---|---|---|---|
| Strip / pad | 0.6–1.2 m | ±50mm | Midi excavator, level | Trench must stay dry |
| Raft | 0.5–1.0 m | ±50mm grid | Excavator + grade control | Formation protection critical |
| Pile (bored) | 6–30+ m per bore | Verticality 1:75; depth to design | Piling rig, casing/mud plant | Casing or mud below water |
| Pile caps | 1–3 m³+ each | ±25mm | Excavator, hand finishing | Protect fresh pile heads |
| Mat | Basement depth | ±25mm over full area | Heavy fleet + survey control | Designed dewatering mandatory |
7. Cost Comparison 2026
| Type | Excavation Rate Basis | 2026 Band (KES) | Relative Total Cost |
|---|---|---|---|
| Strip / pad | per linear metre of trench | 250–450 | 1× (baseline) |
| Raft | per m² footprint | 200–400 dig | ~2× strip |
| Pile (bored) | per metre of bore | 6,000–15,000 (Ø300–600); 15,000–30,000 (Ø900–1,200) | ~4× raft |
| Pile caps | per cap | 15,000–60,000 + concrete | Included in pile programme |
| Mat | per m² formed + concrete | Deep dig per basement rates; pour per m³ | Top of ladder |
The comparison insight: excavation is rarely the dominant line — it is the gate that the concrete and reinforcement lines walk through. Cheap excavation with failed tolerance re-prices everything above it; correct excavation makes every following line predictable. The full 2026 comparison itemises every type, and Nairobi foundation benchmarks anchor the bands.
8. Frequently Asked Questions
The soil investigation answers that — never habit, never neighbourly advice. The decision ladder: where competent soil carries 100–150 kN/m² within a metre of the surface, strip (or pad) foundations serve single and two-storey buildings at the lowest cost. Where ground is variable or soft but loads are moderate — expansive clays, filled ground, mixed profiles — a raft spreads the load and bridges the weak zones. Where loads are heavy or the competent stratum is deep — multi-storey frames on poor ground, industrial plant, waterlogged sites — piles transfer load past everything unreliable to rock or dense strata. And where a high-rise needs both spread and depth, the mat foundation — a thick reinforced slab joining every column and pile — becomes the answer. Each step up the ladder buys capacity at a price: roughly, strip to raft doubles the foundation cost, raft to pile doubles it again, and mat sits at the top. Paying for the rung you need is engineering; paying for the rung above is waste, and the rung below is a claim. Our 2026 cost comparison prices every rung.
Strip trenches go to competent ground, and the engineer's soil investigation names that depth: typically 600–900mm for single-storey on good soil, 900mm–1.2m for two storeys, and deeper where soft material continues downward or expansive clay demands replacement. The excavation standards that come with the depths: trench width 450–600mm on the engineer's bearing width, plus working room where formwork needs it; formation within ±50mm; trench walls trimmed vertical or safely battered; water kept out — a flooded trench softens the very ground the strip bears on; and bottom protection from the elements and the next trade's boots until blinding lands. On black cotton the standard changes completely: the trench continues down until the clay ends or the design says bridge it — see black cotton foundation practice — because a strip poured on untreated expansive clay is a crack schedule, not a foundation.
Functionally they are cousins — both are continuous reinforced slabs spreading load — and the terms blur in Kenyan usage, but the engineering distinction is real. A raft typically serves lighter structures on poor ground: a slab, often 200–400mm thick, under the whole building footprint, sized to spread settlement evenly and carry the walls above weak soil. It is the standard answer for houses on black cotton, filled ground or variable profiles. A mat foundation serves serious structures: thicker — 500–1,500mm and far more heavily reinforced — designed not just to spread but to act as a structural member, tying together columns, resisting uplift where water tables press, and often integrating with piles beneath. Mats appear under towers, basements and industrial plant where individual footings would overlap or differential settlement is unthinkable. The excavation implication drives the cost difference: a raft dig is shallow and tolerant, a mat dig is deep, heavily reinforced below and — where basements join — the deepest earthwork on most urban sites. Mat excavation for high-rise buildings covers the engineering.
Pile pricing separates into the bore (or drive), the reinforcement and the concrete, and the excavation lines belong to the first: bored piles in ordinary ground at KES 6,000–15,000 per metre of depth for 300–600mm diameters on a piling rig, rising to KES 15,000–30,000 per metre for large-diameter 900–1,200mm bores through difficult ground. Add the excavation adjacents: pile caps — the 1.5–3m³ (or much larger) block each pile lands in — dug by excavator at standard rates but to ±25mm tolerance and often below the general formation; and where piles go deep through water or unstable ground, casing and drilling-mud handling become real line items. Driven piles price differently: no excavation at all, but a driven rig mobilisation and per-metre driving rates that suit controllable sites without obstruction. The full comparison — bored versus driven, per-diameter pricing, cap schedules — lives in our 2026 bored vs driven piles guide. Budget rule: a pile foundation programme runs 2–4× the equivalent raft — worth every shilling where the ground demands it, wasted where it does not.
Tolerance follows structural sensitivity, and each type has its own standard: strip trenches — ±50mm on formation, checked with a level before blinding; raft excavations — ±50mm across the footprint, with the whole formation verified on a grid because the slab will be cast directly onto it; pile bores — verticality within 1:75 and depth to design, verified per pile, because the pile is the foundation and the bore is the pile; pile cap excavations — ±25mm, dug after piling with care not to disturb the heads; mat foundations — ±25mm across large areas, survey-controlled, because a 1,000mm slab poured on a formation 50mm out of level has a problem nobody can see until it matters. The universal: engineer inspection at every formation, photographic record before covering, and backfill or blinding within the window the ground allows. Foundations are the one part of the building nobody ever sees again — which is exactly why their excavation tolerances are the tightest on site. Foundation cost benchmarks complete the picture.
